HEAVY DUTY INDUSTRIAL

H

QR CODE

030126-HD

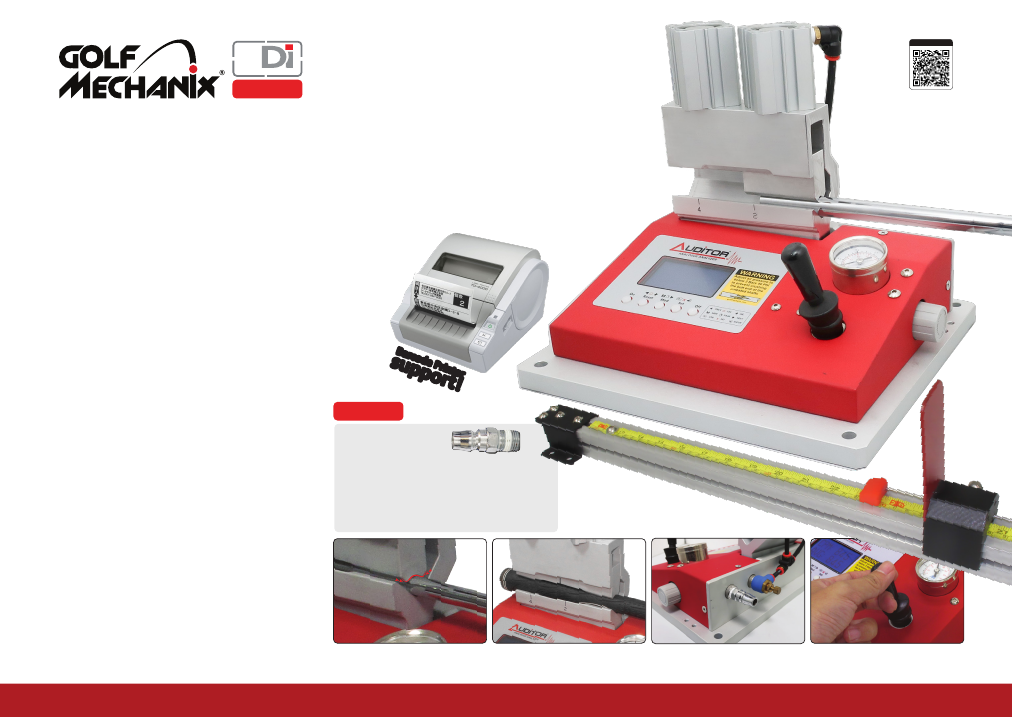

Pneumatic Reference Analyser

A Brand new semi-automated frequency analyzer design built around our super stable and

highly successful load cell technology which has driven our line of reference analyzers for

the past 2 decades.We've tweaked this design by adding a split top clamp that can handle

shaft butts at 2,3,4 and 5" as well as ripped shafts. This is in line with current trends at

some of the top club fitters in the country. Now and with this new update; High volume

fitters and those club makers heavily vested into shaft profiling can benefit from the speed

and reliability of this design with the integrated and advanced shaft profiling systems (APS).

Analogue to Digital signal processing features

-Load cell sensing technology detects the faintest shaft oscillation.

-Selectable sensitivity level with digital oscillation count filtering.

-Selectable additive averaging function with override protection

-Analogue signal output offers additional analytical tools to aid shaft

design investigation of elastic recovery, fatigue stress analysis etc.

-999 CPM count with auto filtering (selectable)

-Unit conversion CPM / Hertz.

-CPM to Bar code output to printer. ( Printer not supplied)

-Allows

Shaft length input

-Allows shaft test span input

-Allows average CPM sampling interval

-Save as you go data collection

-RS-232 Data output to spreadsheet

-Batch download of profiled shaft data

-Compatible data format .CSV & .TXT

-Calibrated shaft beam length inches/metric

Advanced shaft profiling features setup

c d

su

r

p

o

p

e Printer

ort!

Ba

Optional

H0801-07

1/4" NPTM Asian Hi-Flo

Profiling Guide 030126-U1

030126-BCP

Shaft Clamp Features:

Pneumatic Control features

-50/50 Split clamp arrangement allows the shaft butt

to be clamped at 2",4" 5" and anything in between.

-Machined V-seat in upper clamp improves shaft coupling

with an excellent pressure distribution over contact area.

-Split clamp improves pressure distribution over gripped

shafts and reduces damping losses which greatly proves

the quality of CPM readings.

-Regulated, fully adjustable clamping pressure

-Zero damping, Self Equalizing cylinder pressure

-One way flow, automatic clamp return.

-Fast clamping actuation response time.

-Shaft stop “look ahead” span indicator (1~11”)

-Pre-calibrated and easy to mount / take down.

Bar code Printer support port for 030125-HD

▲Machined

seats provide good

▲V

clamp is large enough to

coupling and pressure distribution

accommodate gripped clubs and

over the shaft

oversized shaft butts

▲Accessible

pneumatic

connection with pressure and

clamp speed control.

▲Short

throw joy stick actuator

with a direct visual over clamping

pressure
