HEAVY DUTY INDUSTRIAL

H

QR CODE

210908

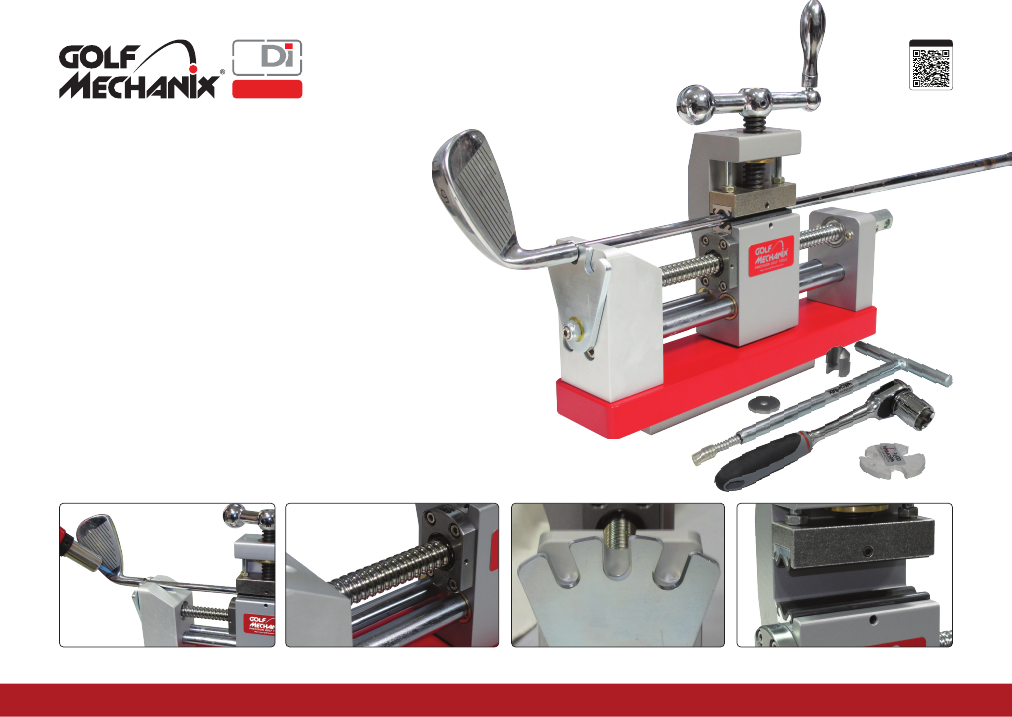

Reverse Thrust Shaft Puller

A new concept in shaft extractor capable of developing up to 3,000

Lbs. of thrust against the hosel effortlessly with less than 3 Ft/Lbs

of torque (1350 kgf @ 0.4 kgf) torque applied at the handle!

For this design We've leveraged the low friction recirculating ball

screw and down ramp thread profile to produce a multiplier effect

which is further enhanced by transferring and distributing the load

directly to the casing instead of the lead screw itself!

This unique configuration is further enhanced by the wedging effect

of the shaft under the clamp, transferring more thrust with no

slippage resulting in a more efficient setup.

To ensure safe shaft removal a 700 Lbs (350 Kg) compression spring

lodged in the drive assembly ensures rapid separation of head and

shaft just as the epoxy bond starts to yield. This ensures that the

shaft tip and shaft adapter are not weakened from the applied heat.

-

Compact design built around parts and components with a proven track record

-Reverse pull design utilizes the low friction, lead screw ramp to maximum thrust

-Reverse pull leverage’s shaft taper to reduce slippage and maximize thrust transfer

-Rigid and Inherently stable, low wear low friction twin guide rod configuration.

-Stationary hosel, can be thoroughly heated with precision and control

-Suitable for any length hosel with or without shaft adapter.

-Bench Pull tested to 3000 Lbs (1350 Kg)

Key Features:

▲Broken

shaft extractor, Hosel protector,

ferrule splitter and wrench are included as

standard.

▲The

stationary hosel is heated evenly where

it matters and with greater control.

▲Linear

ball screw and twin guide rod assembly

▲

Thick hosel stop readily accepts all major

make for a smooth and effortless head extraction shaft tip sizes from .335 through to .410

▲

Non slip “constrictor” rubber jaw assembly is

both sturdy, reliable and easy to refurbish.
