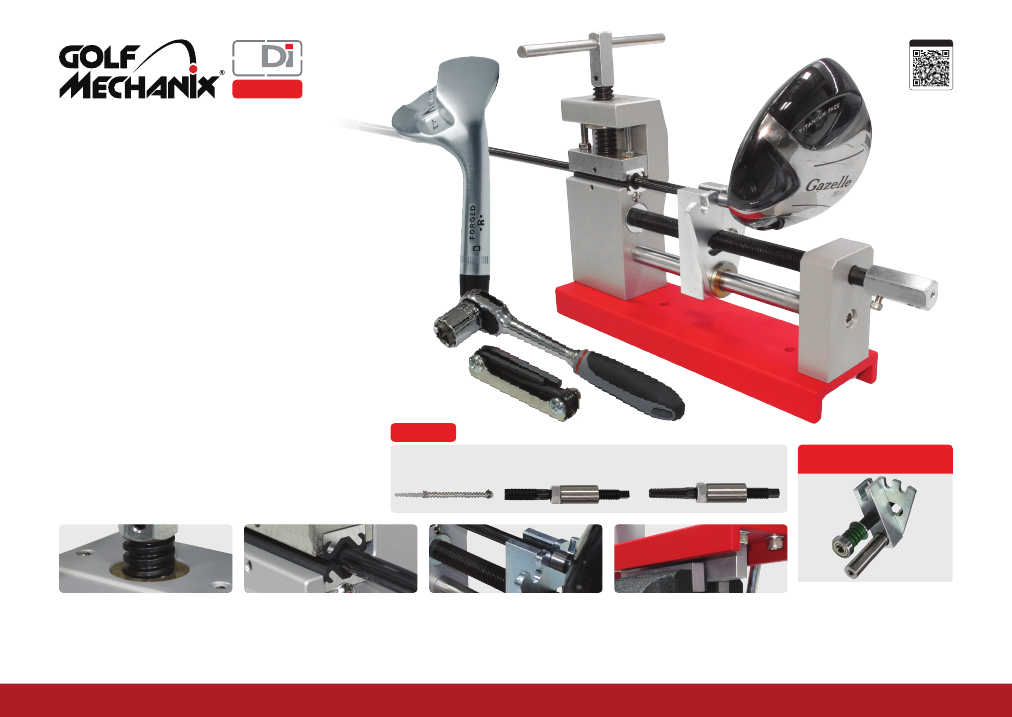

The Ultimate Heavy Duty Shaft Extractor is for the most

demanding golf club repair shops that handle a large

variety of club-head designs and where a fast turn around

on re-shafting jobs are demanded.

With a throw 6 Inches long (150 mm), shafts can be

extracted from deep hosel bores commonly found on

specialty wedges, irons with unusually flat lies and drivers

with volumes in excess of 460cc.

To prevent weakening shafts that are to be re-used, a

power spring is integrated into the jack screw assembly.

When compressed, the spring generates over 700 Lbs. of

thrust against the hosel stopper, forcing the clubhead out

as the epoxy bond breaks down under the applied heat.

To cope with the high shear loads generated during

extraction, the jack screw is supported by bearings at each

end and is restricted laterally by an oversized tie bar. This

arrangement converts the available torque into thrust,

with very little tear and wear.

Options

The Ultimate shaft extractor is reported to have lasted

well over 2000 extraction cycles, before needing the easy

to install jack screw refurbishing kit which can be had at

the fraction of the cost of a new shaft puller.

190100-02

5” Tap extender

Ultimate Heavy Duty Shaft Extractor

190100-20

Extractor-wood Steel shafts

190100-10

Extractor-wood Steel shafts

No 210906-SK1

Jack screw assembly Kit

▲High

load, low friction, low wear

trapezoidal hread and brass nut

produce the large mechanical

advantage and efficient transfer of

power needed to pin the shaft down

with minimal slippage.

▲High

Shear, vulcanized rubber jaws

constricts shaft over its circumference,

distributing pressure evenly creates

slippage inhibiting drag over a larger

surface area.

Replacement rubber jaws SP-R04AV-75

▲Gated

hosel plate works with shafts

as small as .300 and as large as. 410”

including shaft adapters up to .55”

diameter.

▲Extractor

can be held in a bench vis

or mounted to work bench

▲The

jack screw assembly

comprises the carbonitrated high

thread count with ball bearings*

at each end,The jack nut fitted

with a low friction DRYMET

flanged bushing,the linear guide

rod, hosel gate and power spring.
