100906

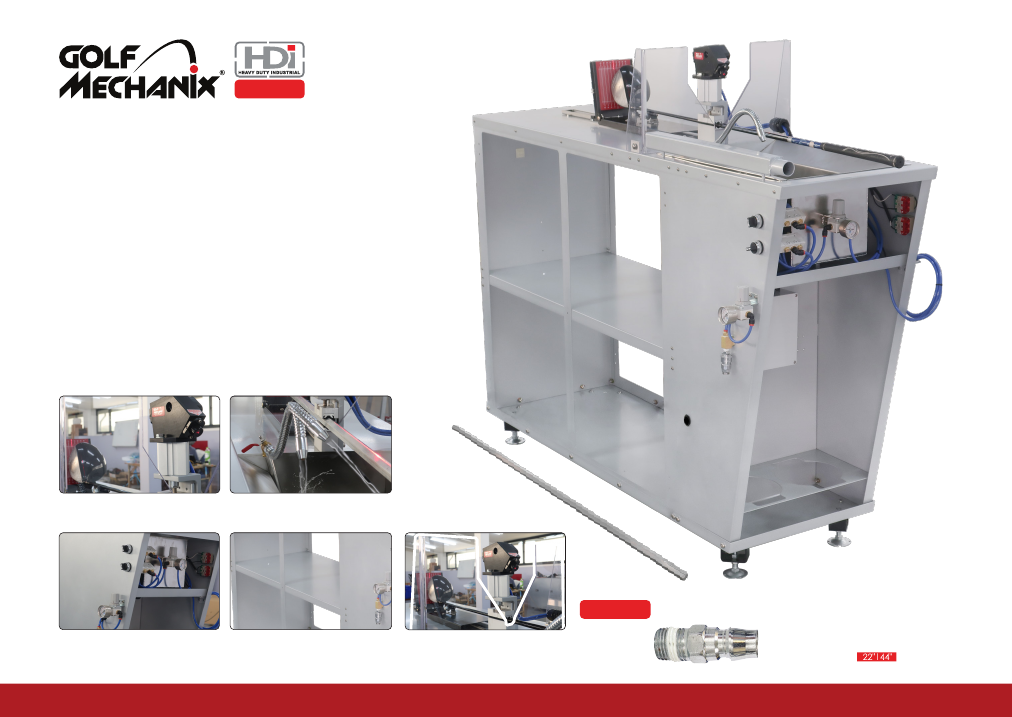

Heavy Duty High Yield Gripping Station

A Self contained and totally integrated gripping station designed

specifically for golf club assembly cells. Currently in use by major

OEM’s this gripping station has all the functionality that’s demanded

from a high yield production environement!

Key Features!

-Cabinet style gripping station with self contained storage

-Ergonomic design with all essential accessories within arms’s reach

-Deep tank with recirculating solvent shower over and into the grip

-Regulated cylinder working pressure and solvent dispensing flow

-Adjusts to any length golf club effortlessly

-Built in metered grip tape dispensers

-High luminosity low profile laser projects trace to club length

-Splash & fume contained solvent tank with integral extraction hood

-Right handed or left handed setup

-Yields up to 60 clubs an hour per manufacturing cell.

-Aproximate weight 300 Lbs

▲

Ca

lib

▲Effortless

club length adjustment

with laser aided visual face angle

▲High

mobility, on-demand solvent

recycling Shower for wetting shafts and grips.

rati

on

sti

c

ki

nc

lud

ed

!!

▲Hand

free operation with regulated air

pressure and solvent recirculating speed.

Option

▲The

knobs on both sides in the

middle can control the activation and

deactivation of the pneumatic fixture

and laser.

▲Cabinet

style design has ample

storage for cartons of grip tape,

solvent, instructions etc.

▲Transparent

guard to prevent water

splashing

H0801-07

1/4" NPTM

Asian Hi-Flo

Industrial Twin Racks

High Density Heavy Duty

Golf Club Rack
