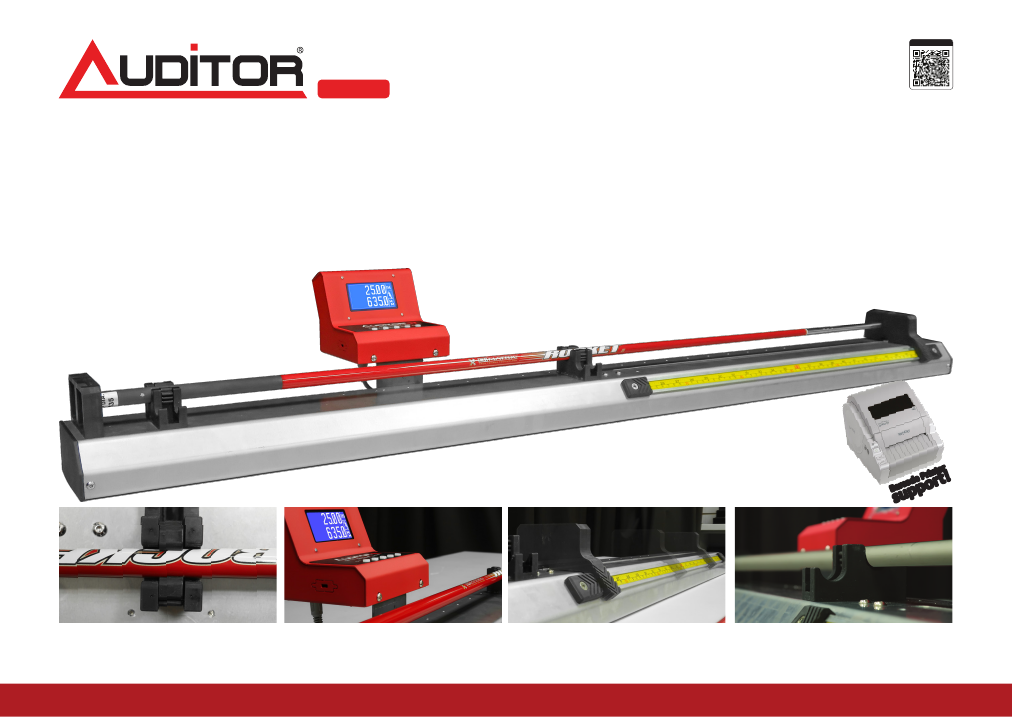

High precision Digital shaft length ruler

We've designed this ruler for those involved with shaft quality control, and

OEM's with large golf club processing and assembly lines. This ruler measures

shafts up to 50" to within an accuracy of better than 0.04". The shaft is held

dead center during the measuring process which eliminates small measuring

errors introduced by the shaft rate of taper. The ruler is built using high

precision magnetized strip encoders with a precision approaching 1/100

millimeter. The Auditor Lambda display adds all the functionality needed to

calibrate, measure and transfer data to either a PC or serial printer port.

Key Features:

-Measures shaft length from 25~48" (special length available upon request)

-Auditor Lambda controller provides a resolution better than 0.004" (0.1mm)

-Accurate length measurement better than 1mm over 48"

-Built in COM port with optional serial printer port for brother TD400 printer.

-High precision magnetized encoder strip

-Non marring shaft clamp hold shaft stationary during the measurement process.

-Calibration standard included.

-Narrow desk foot print.

eP

cod

Bar

s

t!

por

up

er

rint

▲Non

marring spring loaded shaft holders keep

shaft straight and dead square to the measuring

stops while freeing the operator from having to

hold teh shaft will measuring.

▲Auditor

Lambda controller offers a resolution

▲Built

in redundancy with an inlaid carpenter

of better than 0.004" /0.1 mm and a length

ruler for quick cursory checks.

accuracy of better that 1mm.Built in com port

with optional printer port available upon request.

▲Calibration

standard included.
