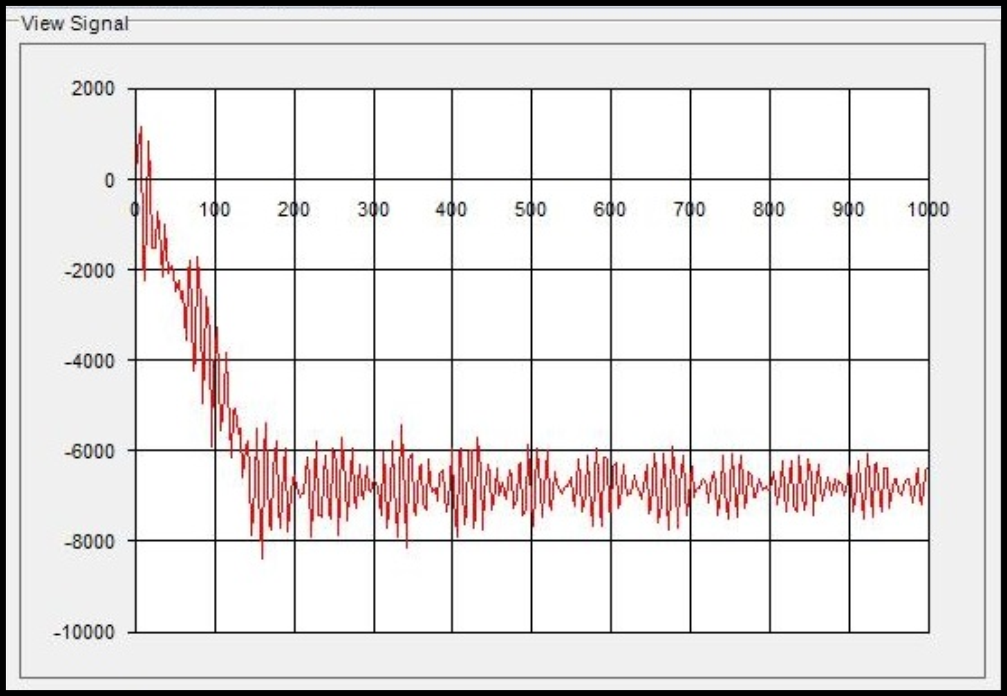

This panel shows the signal produced by the impact of the pendulum. This is useful when troubleshooting problems with the CTM, such as the accelerometer not picking up signals, not picking up signals or wrong trigger level.

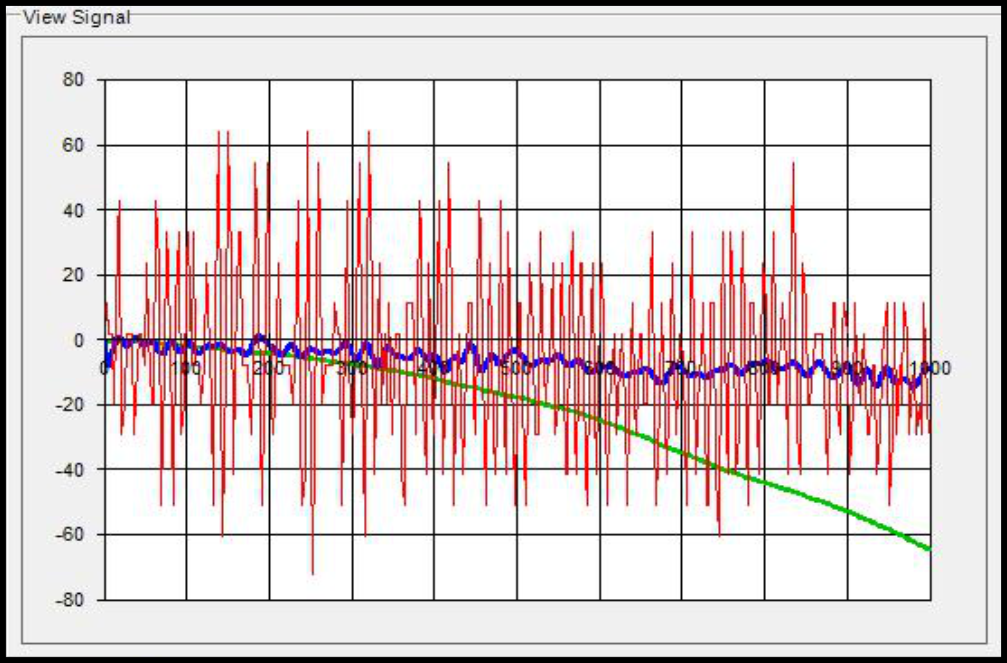

Other unusual signal views such as the one above do not indicate a specific problem, just a problem in general. Common causes of the problem may be:
-Signal cable is loose
-Signal cable is damaged
-Accelerometer is too tight/loose
